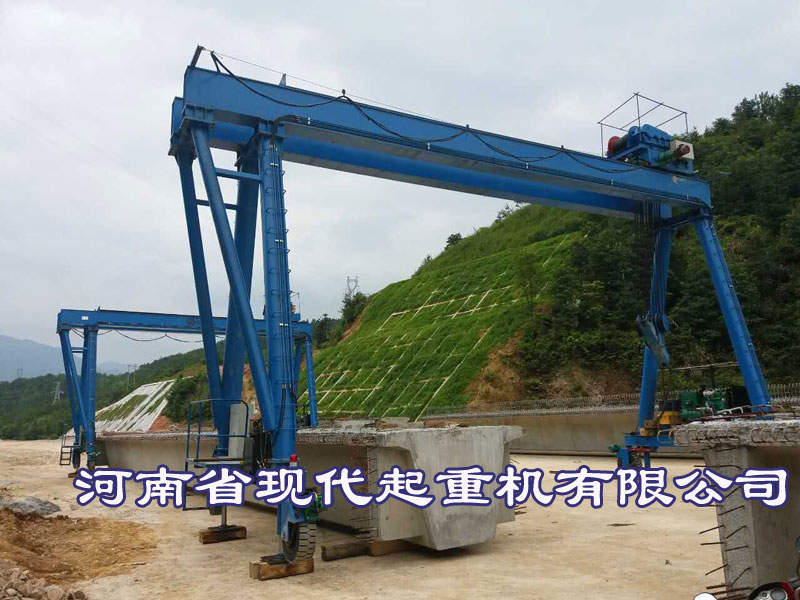

The tire gantry crane consists of a main beam, supporting legs, and ground beams. The main beam is composed of a box shaped beam made of steel plates, the support legs are composed of circular tubes, and the ground beam steel plates are welded together. Its operating mechanism is composed of solid rubber heavy-duty tires driven by a motor, and the steering mechanism is controlled by a hydraulic cylinder for hydraulic steering. Generally generated by diesel generators, it is convenient to use, does not require laying tracks, and is flexible and maneuverable. Used for lifting box girders, T-beams, wind turbine towers, etc., it can be customized for non-standard design and manufacturing according to different user needs. It is mainly used for the demoulding, transportation, and loading of prefabricated beams and slabs, and can be easily walked in the prefabricated beam yard. It has functions such as straight, diagonal, and 90 ° stationary steering. Due to the movement of tires, it requires less roadbed and ground conditions compared to wheel rail systems, and has a higher secondary utilization rate of equipment. Our factory produces non-standard tire type gantry cranes,

　　Lifting capacity: 3-100T

　　Span: 3-20M

　　Height: 3-9M

　　For more information, please call 13603731988 or 18903738880
