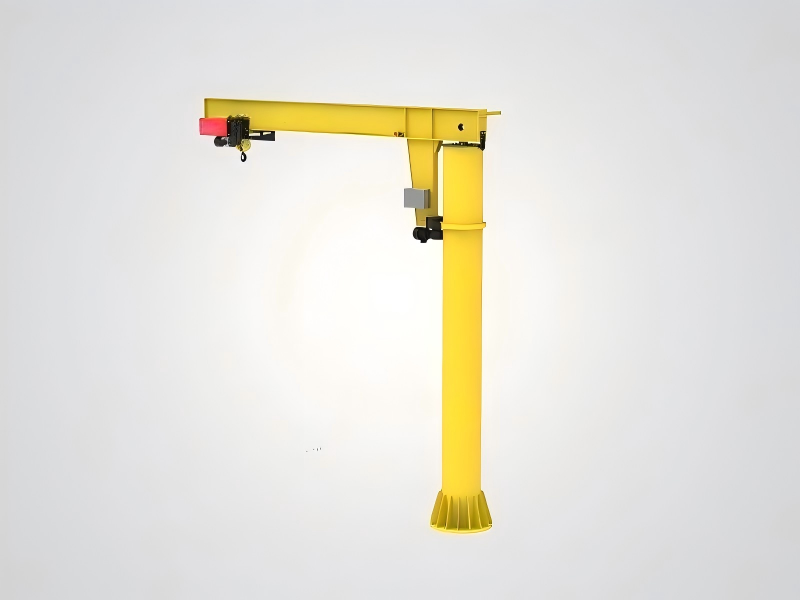

Jib crane is a kind of light duty equipment in crane industry, the main parts are composed of hoist mechanism, swing arm, end beam and driven unit, it is convenient in installation and operation. Jib crane is aimed to lift and move materials in warehouse/workshop and assemble production line. Selecting the right type of crane for your business is critical to maximizing efficiency, streamlining workflow, and getting the best bang for your buck. welcome to contact us and customize jib crane. Pillar mouned jib cranes, wall-mounted slewing jib cranes and wall travelling jib cranes help to lift and transport all types of workpieces quickly, easily and precisely, We provide 0.5-20 ton jib crane to meet your specific requirements.They are installed direct at the workplace and can be equipped with a wide selection of hoist units.

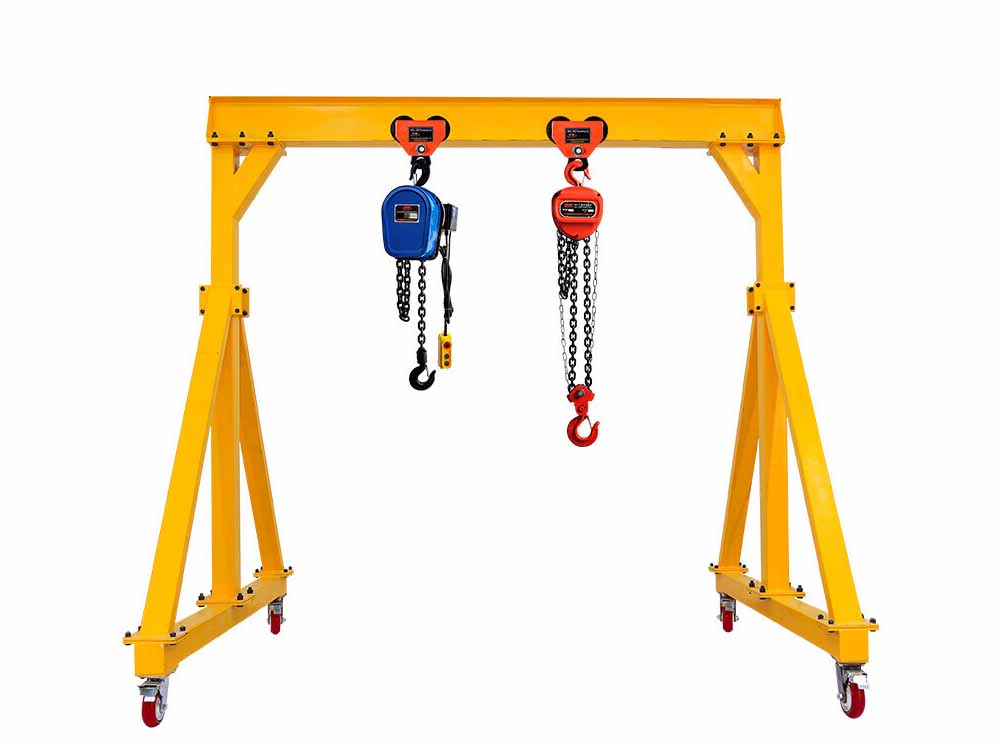

Portable gantry crane is widely used in the workshop, warehouse, garage, and many other indoor and outdoor places for its equipped with the features of light dead weight and easy operation. Compared with the heavy-duty gantries, portable gantries are available to move and disassemble from one work site to another easily. 1. Light dead weight, compact structure, small size and small wheel load 2. With adjustable structure, easy to transport and lifting and high operation safety 3. Flexible, high-efficiency, and long service time. 4. Rapid assembly and disassembly.

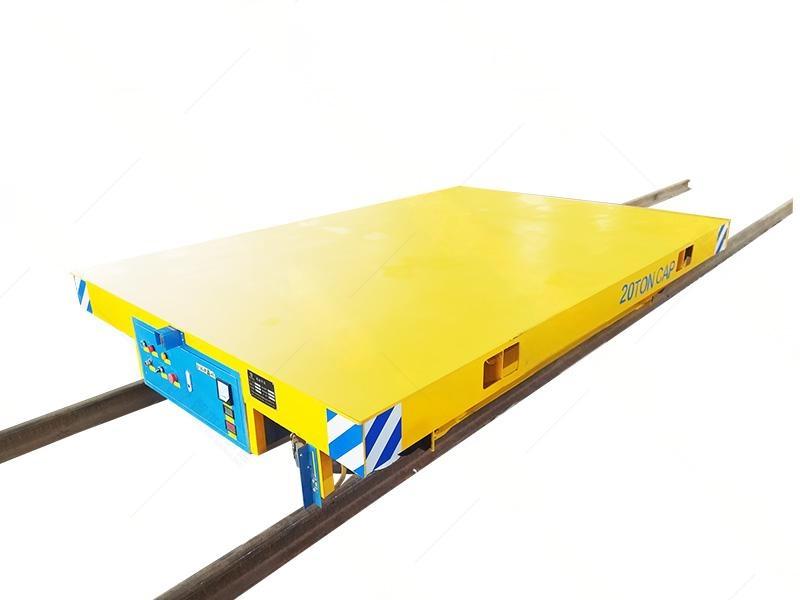

Load capacity: 2-150t, power source: rail powered. This type of material handling cart is powered by the rails. It is ideal for heavy load, high frequency of use and long distance transportation demand. It has many features, such as safety, flexibility, long service life and no distance limit. The rail transfer cart can be used in fabrication shops, steel plants, warehouses, chemical plants, etc. This cart can be operating in S-tracks or curved tracks. The rails should be insulated. If the running distance exceeds 70m, more transformers are required to compensate for pressure drop of the track.
Model
KPDLoad capacity
2t〜150tTable size
can be customizedWheel base
1200〜7000mmRail inner gauge
1200〜2000mmRunning speed
0〜25m /minRunning distance
50〜80mControl mode
button / remote control

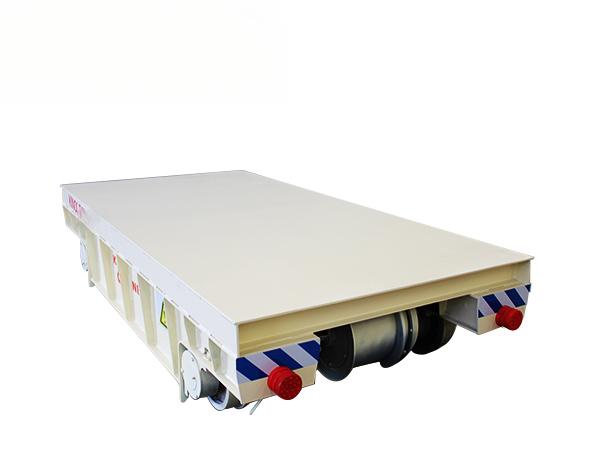

KPJ electric transfer cart Load capacity: 2-150t, power source: cable reel powered. Simple structure and low cost make the AQ-KPJ series common for load transportation in workshops. It is a kind of cable-powered transfer cart that is suitable for harsh environments and explosion-proof environments. This device can be designed with any load capacity and high frequency of use. It can also come with lifting system for simple transportation. When the running distance exceeds 50m, a cable guider is required to assist the winding. Generally, the maximum running distance is less than 200m.
Model
KPJLoad capacity
2t〜150tTable size
can be customizedWheel base
1200〜7000mmRail inner gauge
1200〜2000mmRunning speed
0〜25m /minRunning distance
≤200mControl mode
button / remote control

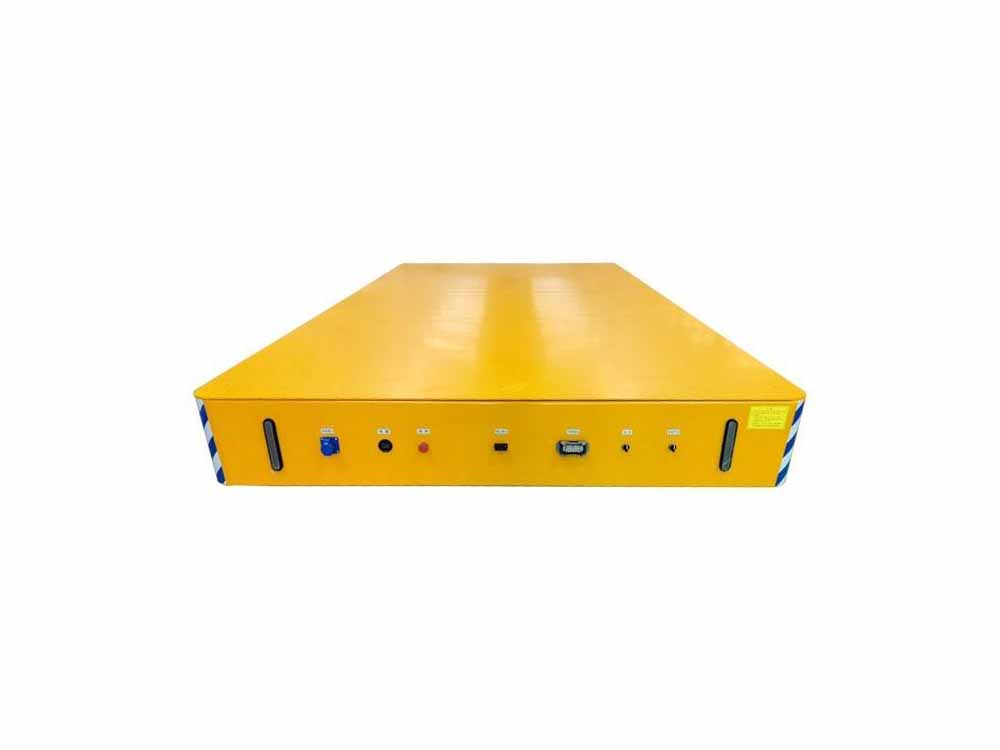

Load capacity: 2-100t, available in battery powered version. Trackless transport cart is very safe and efficient for moving dies, coils, blanks and other heavy loads throughout the workshops as well as between crane bays. These can move in any direction, typically 360° turning in a small space. It features two-way movement, small turning radius, no damage to the floor and flexible operation.
Model
BWPLoad capacity
2t〜100tTable size
can be customizedWheel base
1080〜2000mmRunning speed
0〜25m /minControl mode
button / remote control

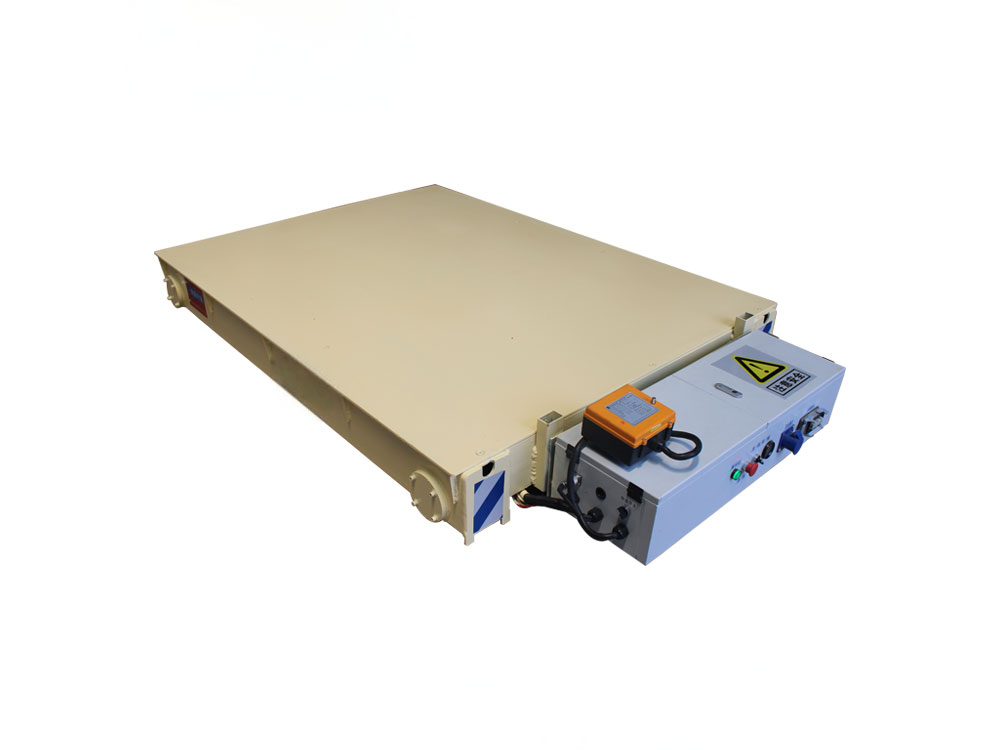

The KPX battery transfer cart is operating on rails. It has excellent safety and flexibility as compared to other AQ-KP series products. The battery is installed inside the device, which requires regular maintenance. The battery life is generally around 2.5 years. This device is ideal for low frequency of use and long distance transportation. Two transfer cars can be linked in tandem for higher capacity load or longer objects. We offer custom shaped decks and carts to suit the type of loads to be handled.
Model
AQ-KPXLoad capacity
2t〜150tTable size
can be customizedWheel base
1200〜7000mmRail inner gauge
1200〜2000mmBattery voltage
24〜72VRunning speed
0〜30m /minControl mode
button / remote control

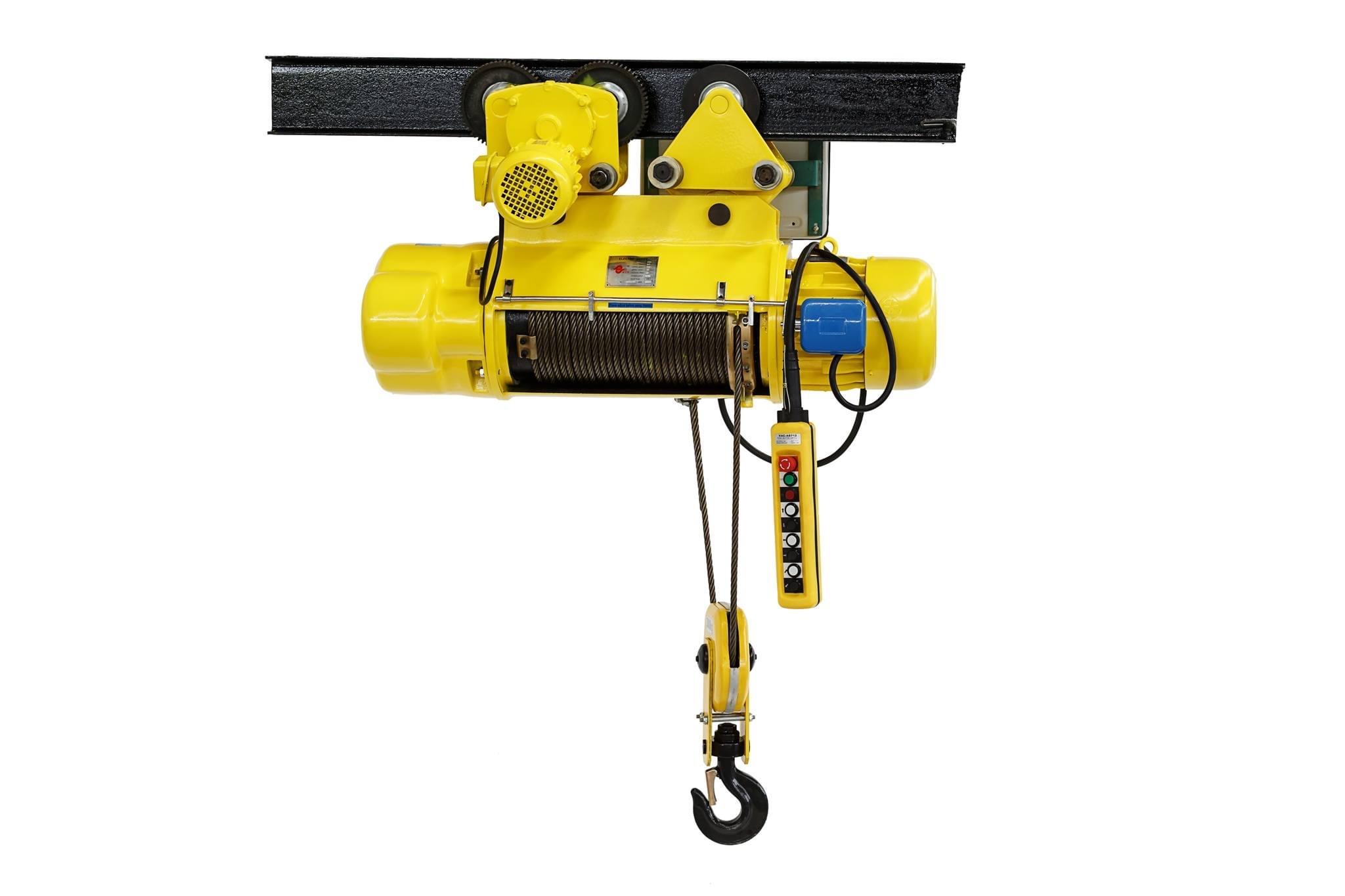

Hoisting mechanism of the universal rope electric hoist adopts the classic "一" type tandem structure, in which the motor and reducer are arranged on both sides of the drum group, the motor drives the power to the reducer side through the transmission shaft arranged inside the drum device, and splines of the output shaft on the the reducer drive the drum group to realize the coiling of the rope.
Load Capacity
1-32t（customized）Lifting Height
6-30m（customized）Work Duty
M3-M5

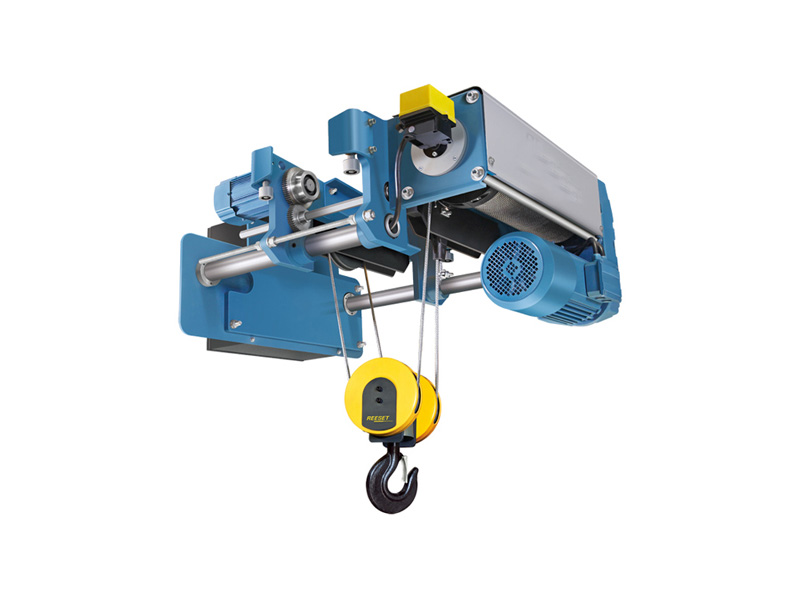

The new design wire rope hoist is a new generation of steel wire rope electric hoists with the features of modular, lightweight, and intelligent. It has the advantages of compact structure, good performance, safe and reliable, energy saving and low noise and environmental protection. It is suitable for workshops, warehouses and power stations. This hoist is developed based on GB and combined with the FEM standard, and also meets the ISO, DIN, BS and other standards.
Load Capacity
3-20tons (customized)Lifting Height
6-30m (customized)Work Duty
M3-M5
